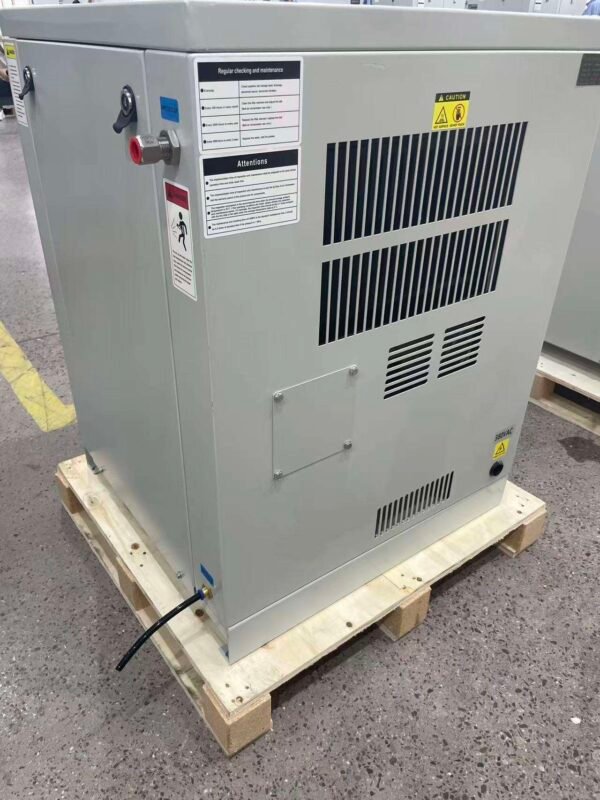

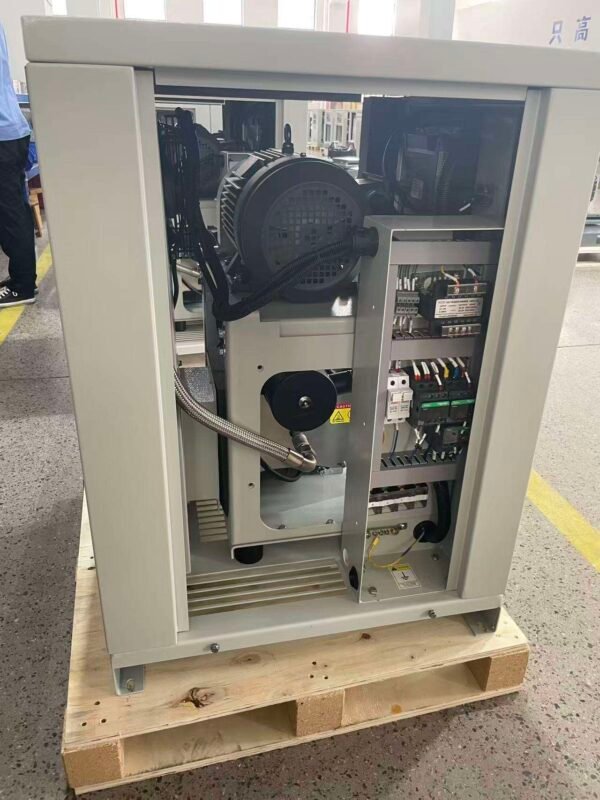

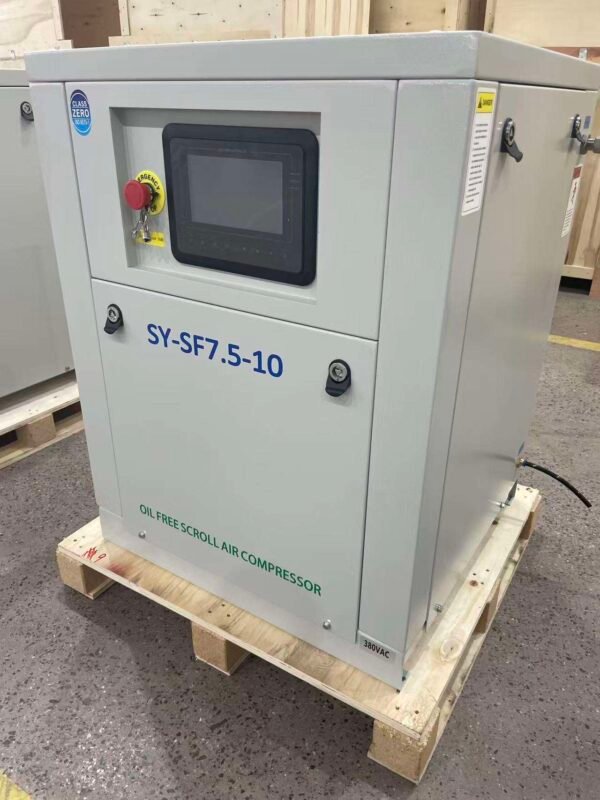

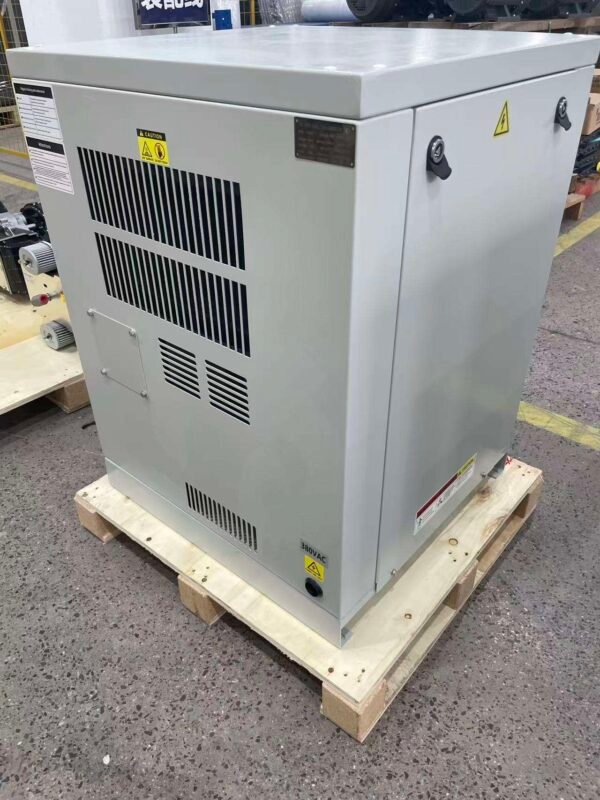

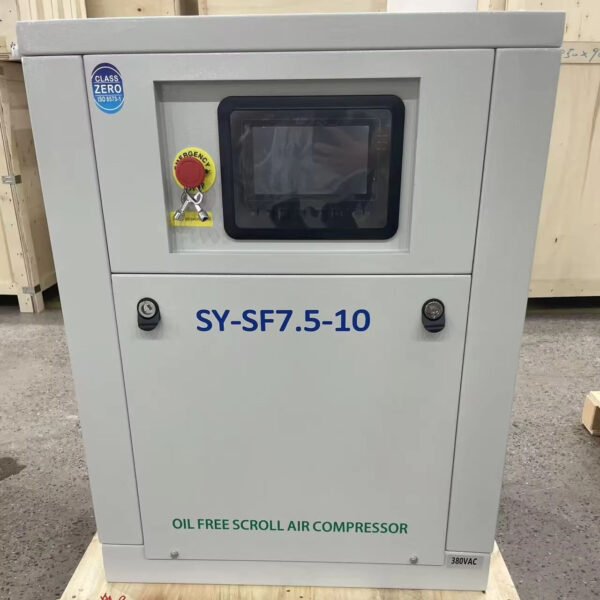

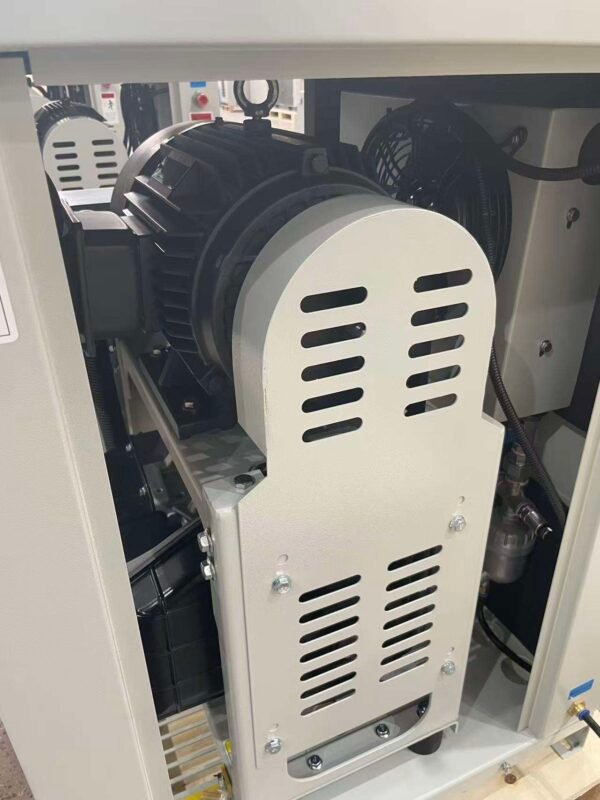

SY-SF7.5-10 Overview

The SY-SF7.5-10 is the largest unit in the SAYI oil-free scroll range, built for factories that need a continuous clean air supply. A 5.5kW three phase motor drives the scroll air end to 505L/min at 10 bar, and air cooling keeps the compressor stable under long duty cycles. Oil-free scroll technology means clean air with no oil contamination, low maintenance and quiet running compared with piston compressors of the same output.

Feature 1.Oil-free design for clean air output. 2.5.5kW high-efficiency operation. 3.Robust construction for long-lasting performance. 4.Multiple voltage options 110V/220V/380V. 5.Low maintenance with 1-year warranty.

Technische Daten

Modell	SY-SF7.5-10
Marke	SAYI
Motor	5.5KW
Spannung	380V 3PH
Betriebsdruck	10 Bar
Kapazität	505L/min
Cooling method	Air Cooling
Gewicht	215KG
Zertifizierung	CE

Benötigen Sie eine andere Konfiguration? Weitere Optionen anzeigen ölfreie Spiral-Luftkompressoren oder sehen Sie nach, ob die SY-SF5 3.7kW scroll air end. Bei OEM- und Großbestellungen wenden Sie sich bitte an SAYI.
