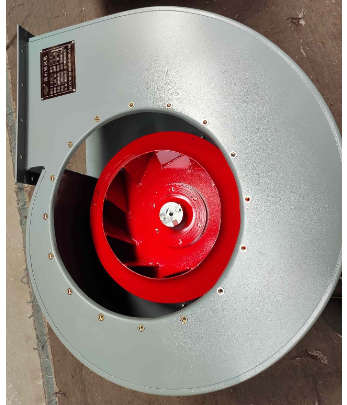

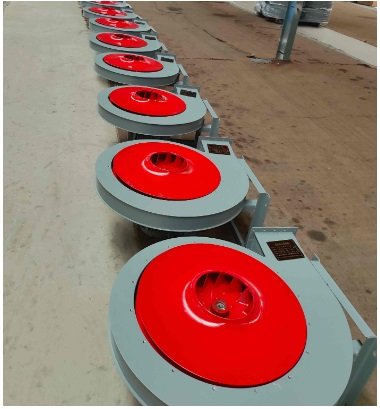

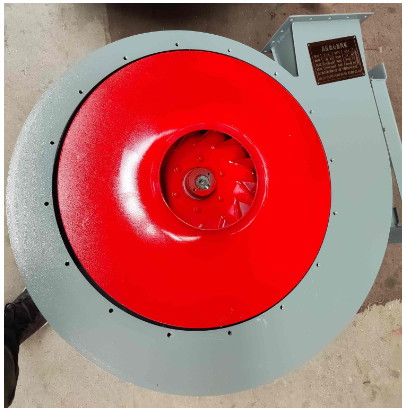

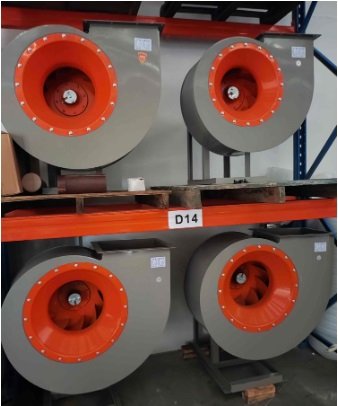

CF-11 Low-Noise High-Pressure Fan Multi-Plane Centrifugal Ventilator
The CF-11 Low-Noise High-Pressure Fan Is a Multi-Plane Centrifugal Ventilator Designed for High Efficiency and Minimal Noise. Ideal for Industrial and Commercial Use, It Provides Powerful Airflow While Maintaining Quiet Operation.
Feature Model 9-26 high pressure centrifugal fan can be widely used in the transport of air or non-corrosive, non-spontaneous combustion, non-viscous gas and other materials.The medium temperature in the conveying process should be lower than 80ºC.At the same time the dust and hard particles must be less than 150mg/m³.The equipment can be used for high pressure forced ventilation in forging, metallurgy, glass, ceramics, radio equipment, electroplating, battery and other production fields, but also can be used for food, feed, mineral powder, plastic and other processing industries of material conveying.
| Model | Material | r/min | m³/h | Pa | KW-P |
| 3A | Metal | 2900 | 1970-726 | 1196-726 | 1.5-2 |
| 3.5A | Metal | 1450 | 990-1910 | 304-177 | 0.75-4 |
| 3A | Metal | 2900 | 3120-6070 | 1628-981 | 3-2 |
| 3.5A | Metal | 1450 | 1560-3040 | 412-245 | 1.1-4 |
| 4A | Metal | 2900 | 4670-9080 | 2138-1275 | 5.5-2 |
| 4A | Metal | 1450 | 2330-4540 | 530-324 | 1.1-4 |
| 4.5A | Metal | 2900 | 6640-12920 | 2697-1618 | 11-2 |
| 4.5A | Metal | 1450 | 3320-6450 | 677-402 | 1.5-4 |
| 5A | Metal | 2900 | 9100-17720 | 3334-2001 | 15-2 |
| 5A | Metal | 1450 | 4560-8860 | 834-500 | 22-4 |
| 6A | Metal | 1450 | 7890-15320 | 1196-706 | 5.5-4 |
| 7C | Metal | 1800 | 15580-30200 | 2501-1481 | 22-4 |
| 8C | Metal | 1600 | 21500-41700 | 2491-1481 | 30-4 |
| 10E | Metal | 1300 | 38500-63500 | 2609-1775 | 55-4 |
| 12E | Metal | 1040 | 53300-87800 | 2393-1638 | 75-4 |
| 14E | Metal | 830 | 67400-111000 | 2089-1422 | 75-6 |
| 16E | Metal | 740 | 89700-147800 | 2177-1480 | 90-6 |
