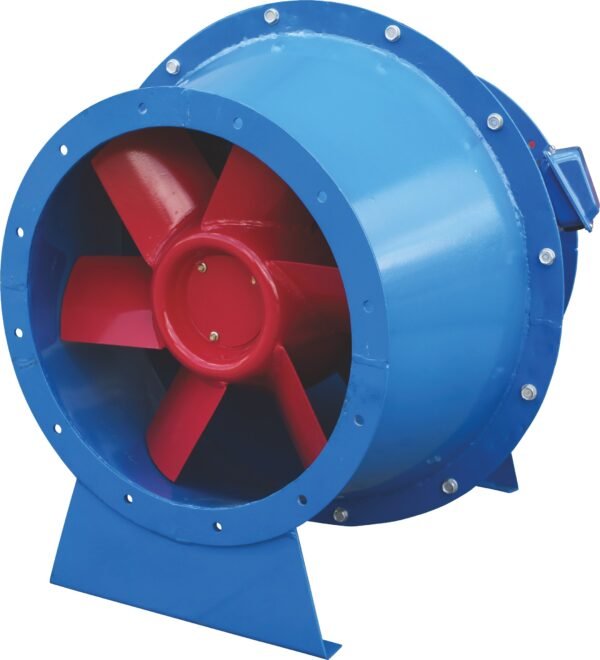

SJG Series Oblique-flow Pipeline Fan

Model	KW-P	r/min	m³/h	Pa	Noise dB(A)
2	0.15-2 0.06-4	2900 1450	400-1200 200-600	400-216 110-54	≤62 ≤58
2.5	0.55-2 0.18-4	2900 1450	600-2000 300-1000	720-440 180-110	≤64 ≤60
3.0	1.1-2 0.37-4	2900 1450	1000-4000 500-2000	1040-520 260-130	≤65 ≤61
3.5	0.55-4 0.25-6	1450 960	1000-4000 800-2500	320-110 140-50	≤61 ≤59

Feature Model 9-26 high pressure centrifugal fan can be widely used in the transport of air or non-corrosive, non-spontaneous combustion, non-viscous gas and other materials.The medium temperature in the conveying process should be lower than 80ºC.At the same time the dust and hard particles must be less than 150mg/m³.The equipment can be used for high pressure forced ventilation in forging, metallurgy, glass, ceramics, radio equipment, electroplating, battery and other production fields, but also can be used for food, feed, mineral powder, plastic and other processing industries of material conveying.
